Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: ENSTER
  • Model Number: EST-IPH6092-NP-SD
  • Type: IP Camera
  • Style: Bullet Camera
  • Sensor: CMOS
  • Technology: Infrared
  • Special Features: Waterproof / Weatherproof
  • Camera type: LPR IP Camera
  • Image Sensor: 1/3" SONY CMOS Sensor
  • Lens: 6-22mm Varifocal Lens
  • Infrared Luminary: 4pcs white bright light
  • Illuminate Distance: More than 60m
  • Waterproof Criterion: IP 66
  • WDR: Yes
  • OSD: Yes
  • Language: Support more than 20 languages
  • Certificate: CE FCC RoHs

Packaging & Delivery

Packaging Details Standard Box
Delivery Time 3-7 Days

  Enster  2MP 1080P Vehicle License Plate Recognition LPR IP Cameras  with WDR HLC, 6 Traffic Mode, TF/SD Card Slot

 Feature:

1. 2.0mega pixel SONY Exmor CMOS sensor, progressive scan , WDR, low illumination, high definition

2. Embedded intelligent algorithms for best viewing license plate day and night.

3. ONVIF protocol,GB28181 protocol, compatible with main NVR manufacturer, Dahua, etc.

4. HLC(highlight compression) function, auto shift from daytime setting mode to night setting mode. Good anti-headlights night effect.

5. WDR adjust

6. 1-3  lanes surveillance.

7. Shutter speed adjustable: 6 traffic modes selectable30KM/H, 60KM/H, 90KM/H,120KM/H,150KM/H,180KM/H standard mode

8. Easy setting: no need professionals, no need client software.

   Manual setting all the function on control board inside camera. Connect NVR or computer,

   playback video, pause and see license plates clearly.

9. Varifocal lens: f=6-22mm

10. 1.8 Inch LCD display menu.:LED luminance value, HLC intensity, AGC value, current traffic mode...ETC

11. 4 PCS white bright lights.

     Color image at night. Night vision distance <20 M. Luminance

     add+ / decrease-, adjustable no matter in daytime or at night.

     Auto shift from daytime setting mode to night setting mode.

12. IP66, waterproof.High quality double shield housing.Heater, FAN Option

13. Support auto snapshot number plates when connection with inductive loops,etc trigger.

     snapshot JPG images store in TF card (max.32G) and/or FTP server. (TF card excluded).

14. double front glasses to avoid light halo and spot when LED is ON.

15.IR illuminator option, black & white image at night.



Specification:





Model

                                       EST-IPH6092-NP-SD

















Video

sensor

1/3" SONY Exmor 2.0 Mega pixel progressive CMOS sensor

resolution

1920× 1080

Min. illumination

color:0.1Lux at F1.2  / LED ON:0.001Lux at F1.2

WDR

Y

Iris control

DC LEVEL

video codec

H.264,M-JPEG

streams

Dual streams,H.264/M-JPEG

Video resolution

1920*1080,D1

Video setting

Brightness, hue, contrast, saturation, sharpness

frame

1-25fps/S

Compression rate

256KBPS-12Mbps

Audio codec

G.711

16:9 display

Y

OSD

channel name, time/date, text overlay position adjustable

3D-DNR

Y

ROI

Y, it can make clearer image of specified region of interest.

Audio input

1 channel linear input, 1kΩ

Audio output

1 channel linear output

storage

PC or NVR

lens

f=6mm/8mm/12mm fixed 3MP lens





Network



Network port

1 RJ45,10/100M self adaptive Ethernet port, 1 BNC,1

power supply port



network protocol

HTTP, HTTPS, RTSP, RTSP over HTTP, TCP/IP, UDP, uPnP,

NTP, SMTP, DHCP,DDNS, DNS, DHCP, PPPoE, FTP...

access agreement

WEB, SDK API, ONVIF

IE Web interface

Access from Web Browser

Camera live view, video recording, change video quality, motion

detection, image snapshot, Privacy Mask, Text Overlay, etc.

storage

snapshot images

snapshot JPEG images store in TF/SD card (max.32G) and

 FTP server.



safety

Built-in watchdog

In unusual circumstances auto reset the system to ensure the normal

operation.

remote reset

network remote reset





additional

OS

Microsoft Windows XP/Windows 7

IE:Microsoft Internet Explorer 6.x or above

Video output

1.0Vp-p,75Ω

Power supply

DC12V

Operation temperature

-10°C—50°C

N.W:

2.5KG

size

12” , L 390mm×W 140mm×H 143mm



Picture:







Image Effect:

2MP WDR LPR IP Camera in Night



2MP WDR IP Camera in Night



Certification:

Company Show:

Business around the World:



Application to any need place:

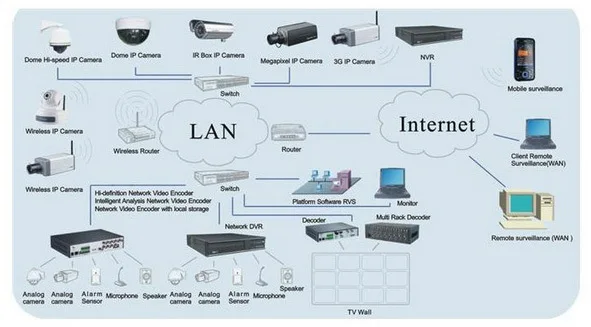

 Basic Connection System:

 r sece
Satisfied Service:

1.Any inquiries will be replied within 24 hours
2.Professional manufacturer. Welcome to visit our website: www.enster.com

3.OEM/ODM available:

1).Silk print logo on the camera;

2). Customized camera housing;

3).Customized Color box

4).Any your idea on camera we can help you to design and put it into production

4.High quality, fashion designs ,reasonable & competitive price, fast lead time .

5.After-Sale Service:

1). All products will have been strictly Quality Checked in house before packing
2). All products will be well packed before shipping.
3).All our products have 2 year warranty,And we sure the product will be free from maintenance
within warranty period

6.Faster delivery:

Sample order in stock ,and 3--7days for bulk production

7.Payment:

You can pay for the order via :T/T,Western Union ,Paypal & MoneyGram .

8.Shipping

We have strong cooperation with DHL, TNT, UPS, FEDEX, EMS , China Air Post.

You also can choose your own shipping forwarder.
